Click to enlarge Click to enlarge

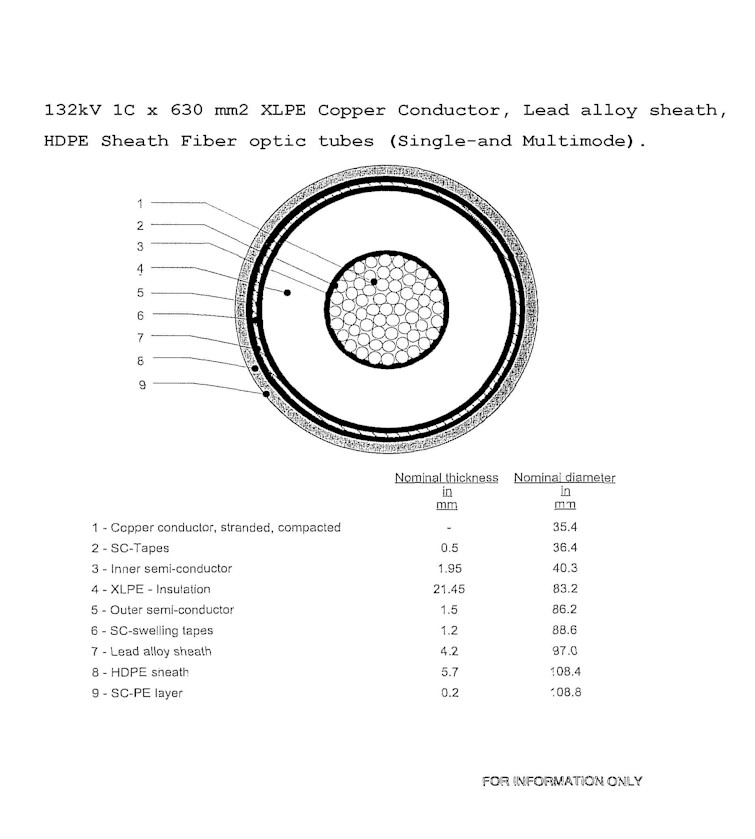

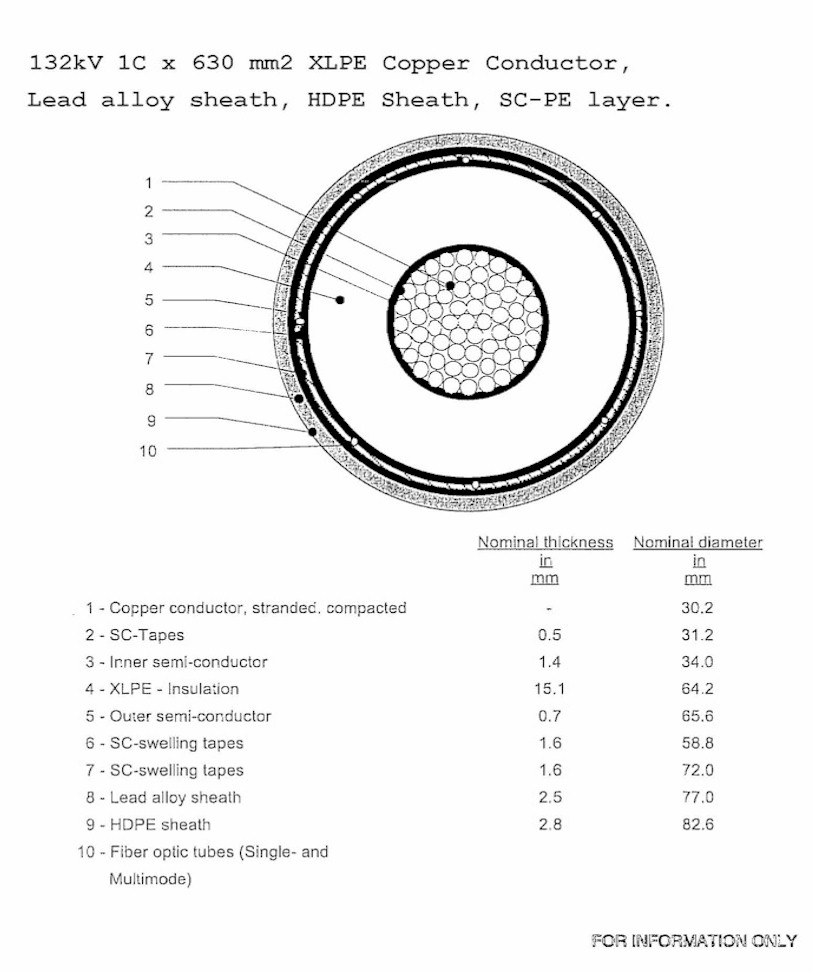

132kV 1C x 630 mm2 XLPE Copper Conductor, Lead alloy sheath, HDPE Sheath Fiber optic tubes (Single-and Multimode). 132kV 1C x 630 mm2 XLPE Copper Conductor, Lead alloy sheath, HDPE Sheath, SC-PE layer.


Click to enlarge

Click to enlarge

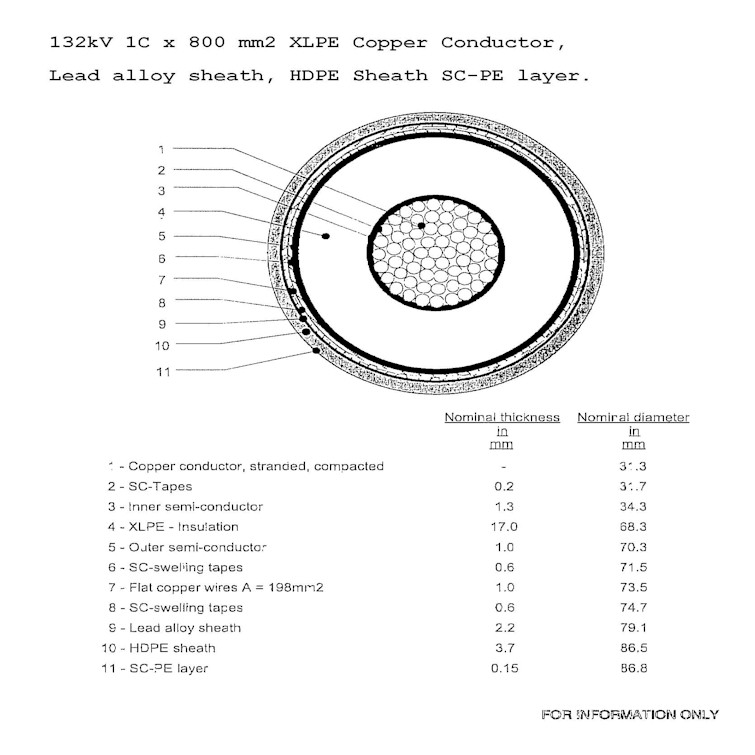

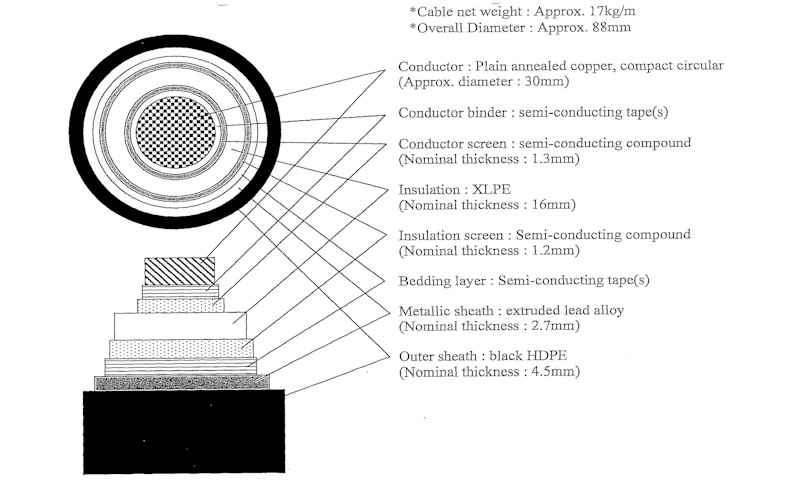

132kV 1C x 800 mm2 XLPE Copper Conductor, Lead alloy sheath, HDPE Sheath SC-PE layer. 132kV 1C x 630 mm2 XLPE Copper Conductor, Lead/HDPE.

Click to enlarge

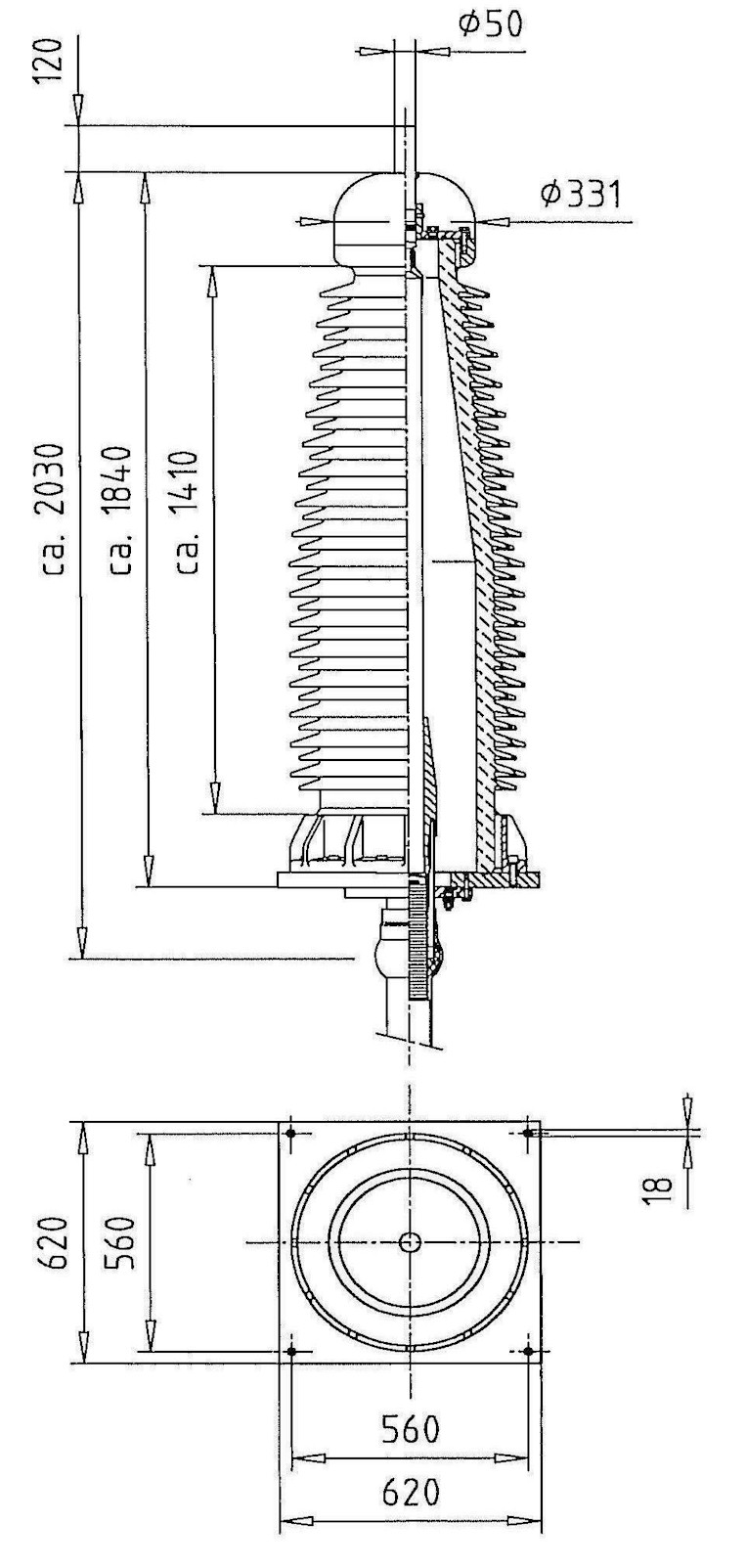

Outdoor sealing end.
